Pipe Diameter Calculator

حساب قطر من أي الأنابيب باستخدام هذه الآلة الحاسبة.

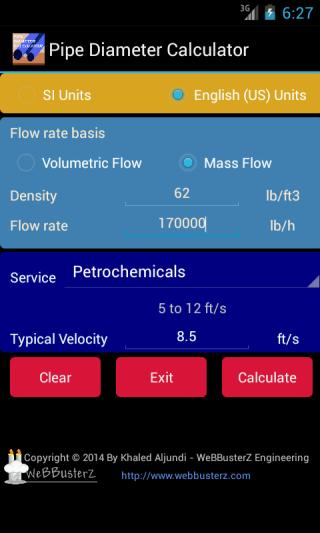

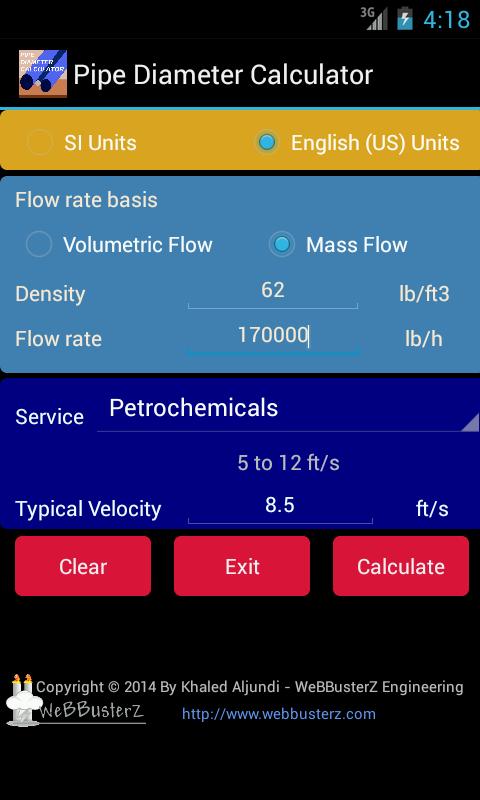

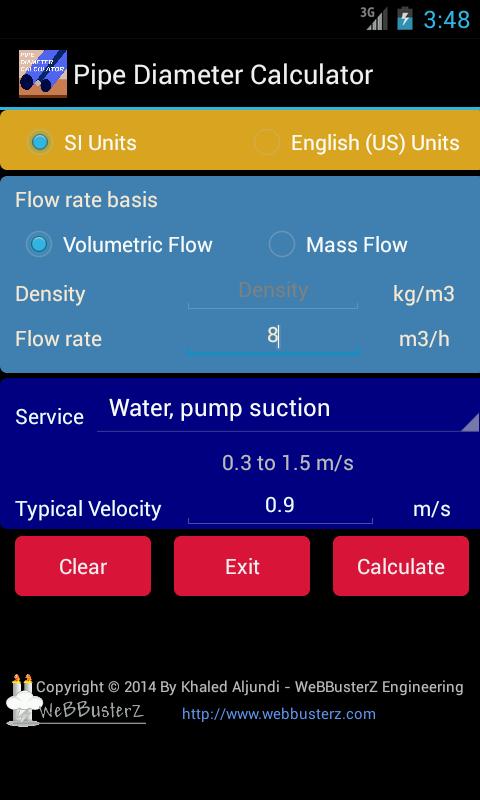

Pipe Diameter Calculator allows you to calculate the diameter of any pipe using this calculator. The calculator supports two units of measurements,

SI Units and English/US Units. The calculator needs the following input to calculate the diameter:

+ Flow rate - This can be defined by selecting either Mass Flow or Volumetric Flow basis.

+ Density - Only required if using Mass Flow rate

+ Velocity in pipe.

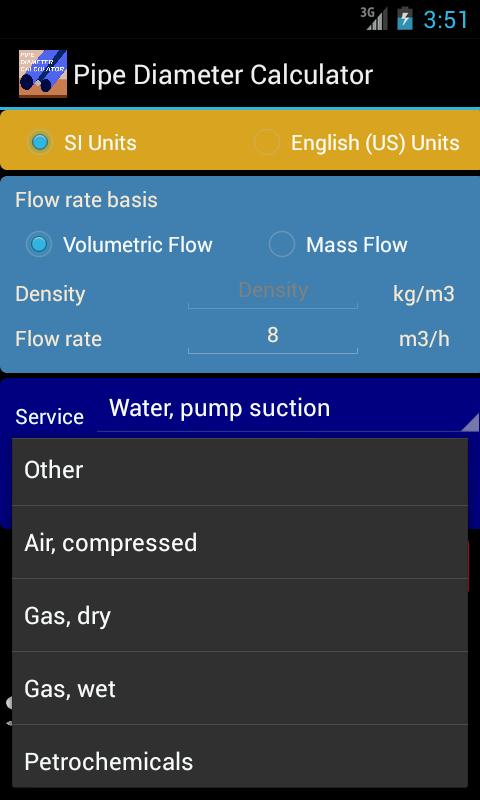

The application has a predefined list of services the includes typical velocities that can be used for the velocity input, the purpose of this is to provide a quick estimate, you can also use your own defined velocity input if you prefer.

Below is a list of services that the application has a typical/recommended velocity range for:

Air, compressed

Gas, dry

Gas, wet

Petrochemicals

Sodium hydroxide (0 - 30%)

Sodium hydroxide (30 - 50%)

Sodium hydroxide (50 - 73%)

Steam, dry, high pressure (> 2 bar)

Steam, saturated, low pressure (<= 2 bar)

Steam, small branch lines

Steam, wet

Water, average service

Water, boiler feed

Water, pump suction

Water, sea and brackish

Water, wastewater, pump suction

Water, wastewater, pump discharge

Water, wastewater, Gravity

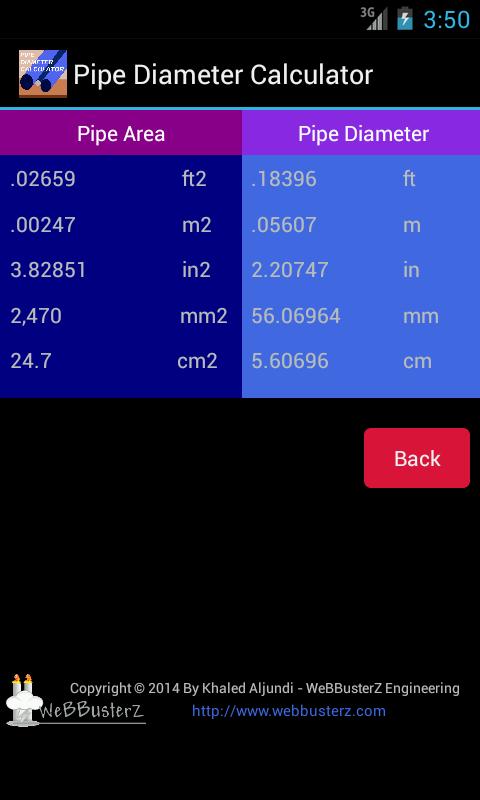

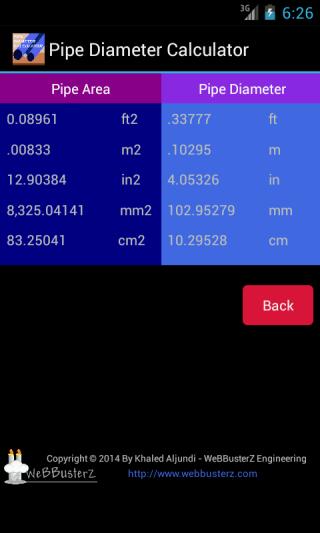

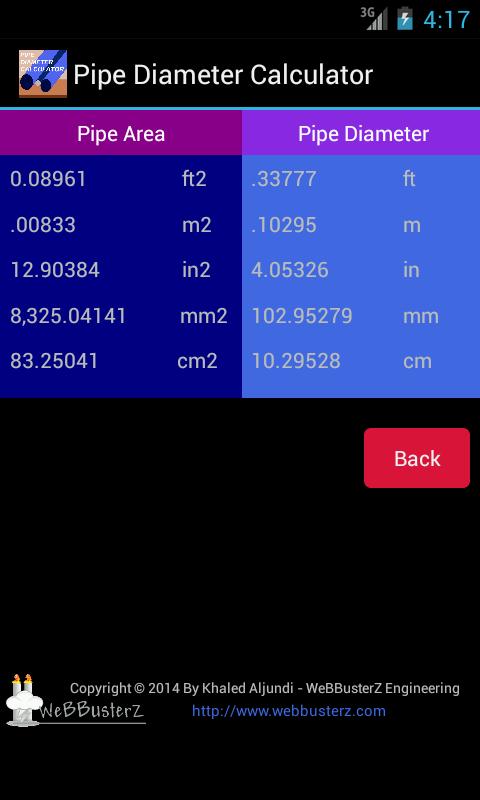

The application will calculate the PIPE AREA and PIPE DIAMETER then display the results in different units,

The Pipe Area is calculated and displayed in five different units (ft2, m2, in2, mm2, cm2)

The Pipe Diameter is calculated and displayed in five different units (ft, m, in, mm, cm)

This version of the application contains no advertisements and doesn't need internet connection to function.
